Truck Security Ford E-Series Vans

Protect your ride...

Jimmi' Jammer™ product details for Ford E-Series Vans, E-150, E-250, E-350

It only takes a screwdriver and 10 seconds to break in...
unless you have the Jimmi' Jammer™ installed.

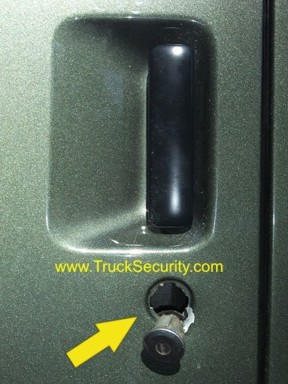

Above: Photo from Chris B. The thieves hit his van and pried the lock out of the door!

Stop Thief!

Ford vans are often burglarized by prying the the lock cylinder out of the door.

It's fast, easy and doesn't attract much attention.

The Jimmi' Jammer™ for Ford vans prevents thieves from getting at the lock rods inside the door or pulling the lock out of the door.

Scroll down to see how the Jimmi' Jammer™ works on your van...

Photo 2

Photo 3

<< Photo 2:

Photo 2 shows the factory set-up inside your van door.

The arrow on the left side of the photo points to the lock.

The arrow on the right side of the photo points to the factory lock clip holding the lock in place.

When a thief prys under the lock face on the outside of the door, this clip pops off the lock, and the lock can be pulled out of the door. Once the lock is loose, the door can be easily unlocked.

The whole process takes about 20 seconds!

Now see how the Jimmi' Jammer™ will prevent this from happening:

<< Photo 3:

Photo 3 shows the backside of an E-250 door lock, (inside the door) with the Jimmi' Jammer™ installed.

The lower left arrow points to the lock assembly. Without the Jimmi' Jammer™ iin place, the factory clip can be dislodged from the outside, and the lock moved to unlock the door.

The arrow on the right side of the photo points to the Backing Plate portion of the Jimmi' Jammer™. This plate reinforces the door metal and prevents the thief from pushing the door metal inward to get under the outside lock face.

The arrow on the upper left points to the Clip Replacement Plate portion of the Jimmi' Jammer™.. This plate slides on over the Backing Plate and holds the lock and Backing Plate in place. Three set screws are used to add strength to the assembly.

Ready to order?
click here.

What about the cargo doors on a Ford van?

Your side and back doors are vulnerable too!

Thieves can get in through the side and rear cargo doors in the same way they can on the front doors. We also have Jimmi' Jammer™ kits available for these doors..

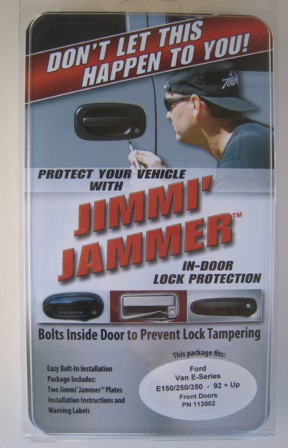

Each kit comes with everything needed: - Jimmi' Jammer™ plate for each door - Window warning labels - Step by step instructions Note: Front door kit is for 2 doors. Side and rear door kits sold seperately.

Kit part numbers for 1992 - current Ford E-series vans:

PN 113502 Front door kit for 1992-current E-150, E-250, E-350. Protects both front doors.

PN 113503 Side cargo door kit for 1992-current E-150, E-250, E-350. Will fit either side cargo door. (Each 11503 kit will protect one side cargo door.)
NOTE: If you have a passenger type van with a two side doors for backseat passengers, get two PN 113503 kits for these doors.

PN 113504 Rear cargo door kit for 1992-current E-150, E-250, E-350 rear cargo door. Will fit rear cargo door only. (Lock is part of license plate frame on this door).

Ford truck and SUV models, pricing and ordering
click here.


PN 113502	PN 113503
